Thread: Sucking air

  1. 16-10-2024, 10:58 PM #1
    Daniel96
    Daniel96 is offline
    Member Rank = Nisai Daniel96's Avatar
    Join Date
    Nov 2021
    Posts
    61
    Thanks / Likes
    40

    Sucking air

    Im getting such an airlock in my pump after the K1 moving bed. I can hear all the bubbles and airpockets through the pipework and pump. How can this be eliminated? Attached photo of plumbing, and the PVC pipe is the outlet in the bio. Reducing the airpump in the bio hasn't helped.
    Thankyou
    462549851_1052650213007367_6206195620743406427_n.jpg462543675_528083313175412_7311260940680590333_n.jpgpumpr.jpg


    Reply With Quote Reply With Quote Add To BookmarksAdd To Bookmarks
  2. Thanks john1 Thanked / Liked this Post
  3. 17-10-2024, 11:07 AM #2
    davethefish1
    davethefish1 is offline
    Senior Member Rank = Supreme Champion davethefish1's Avatar
    Join Date
    Apr 2019
    Location
    Bedworth
    Posts
    6,204
    Thanks / Likes
    12284
    i would have the pump feed at the bottom of the bio, not half way up where the air is mixed with the water.
    could also be cavitation, there doesn't look to be enough flow through those few holes for the pump so it will be restricted, which can cause cavitation.

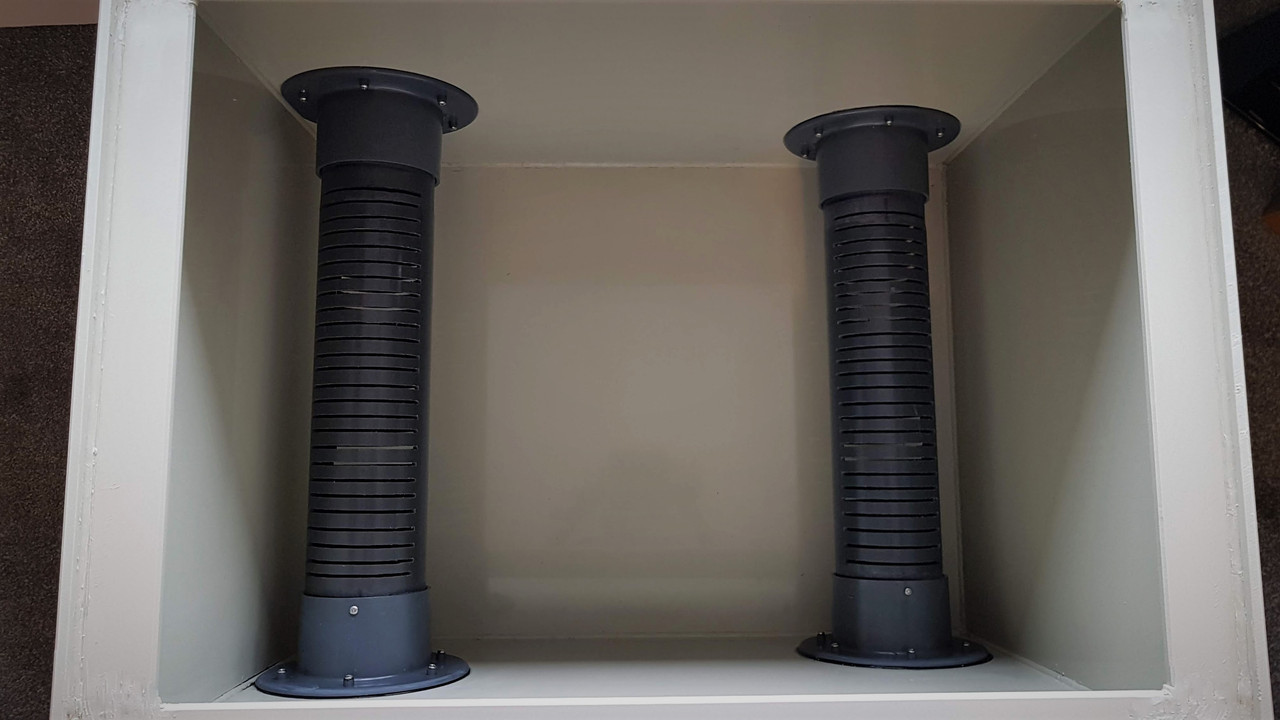

    cutting slots is better than drilling holes

    Last edited by davethefish1; 17-10-2024 at 11:11 AM.
    Reply With Quote Reply With Quote
  4. Thanks Manky Sanke, john1, ganroob Thanked / Liked this Post
  5. 18-10-2024, 07:38 AM #3
    john1
    john1 is offline
    Extreme Koi Member Rank = Supreme Champion john1's Avatar
    Join Date
    Aug 2013
    Location
    N.Wales.
    Posts
    8,907
    Thanks / Likes
    15548
    Agree with Dave spin the pipe to the bottom of the bio and more bigger holes or cut slits in the pipe,easily done with an angle grinder and cutting disc.
    John
    Reply With Quote Reply With Quote
  6. Thanks davethefish1 Thanked / Liked this Post
  7. 20-10-2024, 09:10 PM #4
    vegeemart59
    vegeemart59 is offline
    Member Rank = Nisai vegeemart59's Avatar
    Join Date
    Mar 2020
    Posts
    50
    Thanks / Likes
    52
    Agree with above not enough holes to get water to the pump,drawing air down the feed. There's also a lot of joints before the pump this could be causing air to be sucked in through a leaky joint.
    Reply With Quote Reply With Quote
  8. 02-11-2024, 06:17 AM #5
    Daniel96
    Daniel96 is offline
    Member Rank = Nisai Daniel96's Avatar
    Join Date
    Nov 2021
    Posts
    61
    Thanks / Likes
    40
    Thanks guys, turns out the issue was string algae completely blocking the holes as it came in through the vortex. Have also lowered the pipe and added more slits into the pipe. No more bubbles!
    Reply With Quote Reply With Quote
  9. Thanks Manky Sanke, Alburglar, Twhitenosugar Thanked / Liked this Post
