    Sealing the window

    Had a quick look but can't find anything on the search bar

    Am a day away or so from sealing my window in the pond , got all the sealant and spacers ready to go and this might sound like a truly stupid question but how is best to bead the sealant ie

    1 think straight bead

    Couple thin straight beads

    Wave lines ?? Or is it pure and simple whack a load of sealant every where apply pressure and walk away for a couple days ?


    Sent from my SM-S918B using Tapatalk


    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  2. Thanks davethefish1, john1 Thanked / Liked this Post
  3. #2
    Senior Member Rank = Supreme Champion davethefish1's Avatar
    Join Date
    Apr 2019
    Location
    Bedworth
    Posts
    6,265
    Thanks / Likes
    12372
    Quote Originally Posted by Ajm View Post
    Had a quick look but can't find anything on the search bar

    Am a day away or so from sealing my window in the pond , got all the sealant and spacers ready to go and this might sound like a truly stupid question but how is best to bead the sealant ie

    1 think straight bead

    Couple thin straight beads

    Wave lines ?? Or is it pure and simple whack a load of sealant every where apply pressure and walk away for a couple days ?


    Sent from my SM-S918B using Tapatalk
    have a look at CWD ponds youtube channel loads of window installs there.
    I used one thick (deep) line so you get a good spread out and seal.
    also warmed up the sealant in a bucket of warm water. so it flows out quickly and spreads well.
    but the squishing on mine was helpled by the flange i made for the liner, to hold it in place.

    https://www.youtube.com/@cwdpond/videos

  4. Thanks Ajm, john1 Thanked / Liked this Post
  5. #3
    Extreme Koi Member Rank = Supreme Champion john1's Avatar
    Join Date
    Aug 2013
    Location
    N.Wales.
    Posts
    8,991
    Thanks / Likes
    15640
    Never done one so cant help you,good luck with it Johnathan.
    John

  6. Thanks Ajm Thanked / Liked this Post
  7. #4
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    Quote Originally Posted by davethefish1 View Post
    have a look at CWD ponds youtube channel loads of window installs there.
    I used one thick (deep) line so you get a good spread out and seal.
    also warmed up the sealant in a bucket of warm water. so it flows out quickly and spreads well.
    but the squishing on mine was helpled by the flange i made for the liner, to hold it in place.

    https://www.youtube.com/@cwdpond/videos
    Cheers dave , well that's turned things around in my head i thought especially on the liner ponds you would stick the liner in the recess then the window, but they seem to be running a thin bead and jist pressing liner to the window ??

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  8. Thanks davethefish1 Thanked / Liked this Post
  9. #5
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    Quote Originally Posted by john1 View Post
    Never done one so cant help you,good luck with it Johnathan.
    Cheers John sure I'll need it lol

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  10. Thanks john1 Thanked / Liked this Post
  11. #6
    Senior Member Rank = Supreme Champion davethefish1's Avatar
    Join Date
    Apr 2019
    Location
    Bedworth
    Posts
    6,265
    Thanks / Likes
    12372
    Quote Originally Posted by Ajm View Post
    Cheers dave , well that's turned things around in my head i thought especially on the liner ponds you would stick the liner in the recess then the window, but they seem to be running a thin bead and jist pressing liner to the window ??

    Sent from my SM-S918B using Tapatalk
    That seems to be the consensus,

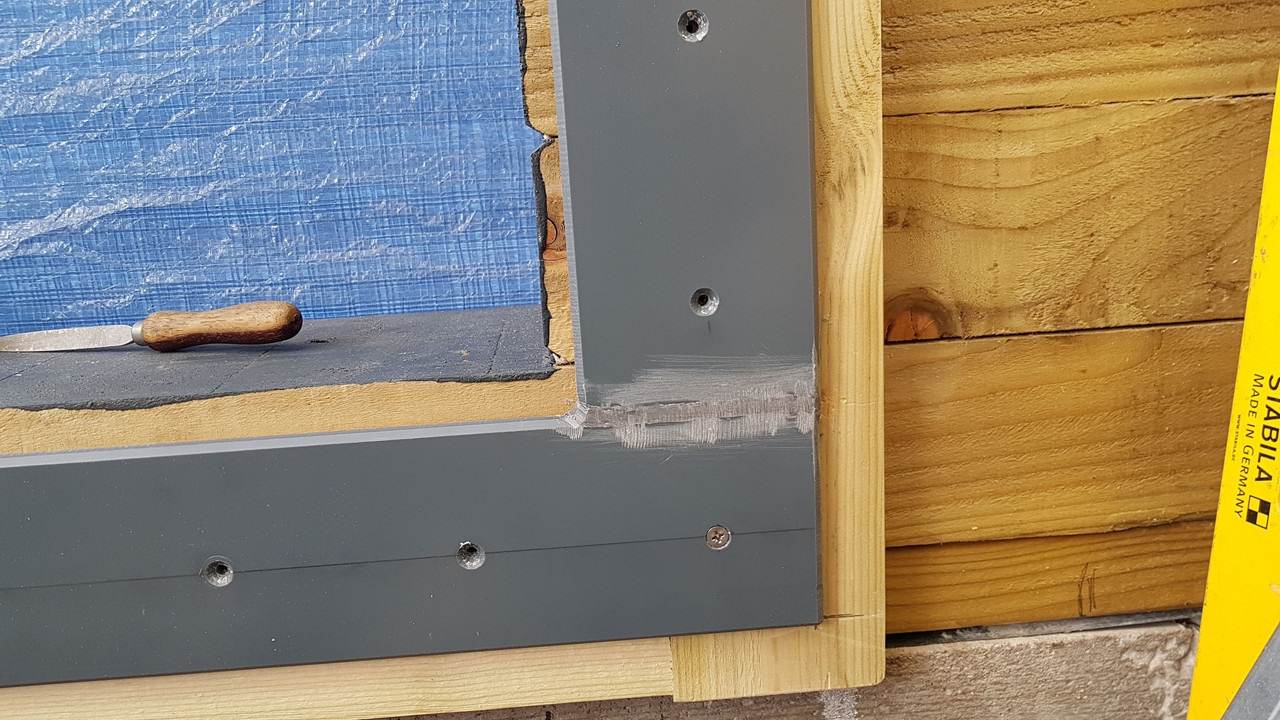

    mine is glass suck to sleepers then liner stuck to glass but i made a plastic flange to clamp the liner in place like a sandwich.

    i suppose the upside to sticking the liner to the glass is,
    if you get a leak you can always scrape the liner away from the glass, pick the sealant off the liner and redo it.
    plus it saves all the creases in the liner...

    but i know what you mean the other way round, the glass would hold the liner in place with the weight of water on it...







    Last edited by davethefish1; 22-03-2025 at 01:00 PM.

  12. Thanks Ajm, john1 Thanked / Liked this Post
  13. #7
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    1 window in place . New liner has just turned up this morning

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  14. Thanks davethefish1, john1, Alburglar Thanked / Liked this Post
  15. #8
    Senior Member Rank = Supreme Champion davethefish1's Avatar
    Join Date
    Apr 2019
    Location
    Bedworth
    Posts
    6,265
    Thanks / Likes
    12372
    Quote Originally Posted by Ajm View Post
    1 window in place . New liner has just turned up this morning

    Sent from my SM-S918B using Tapatalk
    looks great mate, you'll love seeing the fish underwater

  16. Thanks Ajm, john1 Thanked / Liked this Post
  17. #9
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    Quote Originally Posted by davethefish1 View Post
    looks great mate, you'll love seeing the fish underwater
    At the thinest part of the recess it's 2 inch thickest is about 3 inch that should give more than enough strength shouldn't it ?

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  18. Thanks john1 Thanked / Liked this Post
  19. #10
    Senior Member Rank = Adult Champion Alburglar's Avatar
    Join Date
    Aug 2018
    Location
    Dover Kent
    Posts
    1,971
    Thanks / Likes
    2430
    ...good work. The end is in sight!
    3070 Gallons. 4" Bottom Drain and Skimmer. Draco Solum 16 Drum. Anoxic Filtration. Air lift returns.

  20. Thanks Ajm, john1 Thanked / Liked this Post
  21. #11
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    Quote Originally Posted by Alburglar View Post
    ...good work. The end is in sight!
    Only taken since 2018 lol

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  22. Thanks Manky Sanke, john1 Thanked / Liked this Post
  23. #12
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    It's in its in its in !!!

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  24. Thanks Twhitenosugar, davethefish1, john1, samp09, Alburglar, ABN67 Thanked / Liked this Post
  25. #13
    Senior Member Rank = Supreme Champion davethefish1's Avatar
    Join Date
    Apr 2019
    Location
    Bedworth
    Posts
    6,265
    Thanks / Likes
    12372
    looks great mate!
    The kids will love seeing the fish through the glass

  26. Thanks Ajm, john1 Thanked / Liked this Post
  27. #14
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    Quote Originally Posted by davethefish1 View Post
    looks great mate!
    The kids will love seeing the fish through the glass
    She dose mate. She helped me move all the fish back over from pool to pond and every fish took about 10.mins by the time she watched though the window. Still the coping and a surround to do but it's fantastic like . Was having a lul in the hobby that's gone now it's a whole new ball game now just dreaming of a summers night with a whisky.

    Freddyboys ochiba he gave ammia just seems to sit and stare out of the window haha

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  28. Thanks john1, davethefish1, Alburglar, Twhitenosugar Thanked / Liked this Post
  29. #15
    Extreme Koi Member Rank = Supreme Champion john1's Avatar
    Join Date
    Aug 2013
    Location
    N.Wales.
    Posts
    8,991
    Thanks / Likes
    15640
    Well done Johnathan just needs a tidy up easy enough for you.
    You got one of Freddys koi,nice memory of him.

    Enjoy your Whisky mate
    John

  30. Thanks Ajm, davethefish1 Thanked / Liked this Post
  31. #16
    Senior Member Rank = Supreme Champion Ajm's Avatar
    Join Date
    Mar 2018
    Location
    Durham
    Posts
    11,460
    Thanks / Likes
    21456
    Quote Originally Posted by john1 View Post
    Well done Johnathan just needs a tidy up easy enough for you.
    You got one of Freddys koi,nice memory of him.

    Enjoy your Whisky mate
    Did have 4 mate mate . A ph crash over winter one year killed 2 of them off . Still have 2 tho .

    Sent from my SM-S918B using Tapatalk
    Freddyboy the legend

    "we are water keepers first"

    Johnathan

  32. Thanks davethefish1, john1 Thanked / Liked this Post
